Flexible Heaters

a close up of a red wall with metal rivets
a close up of a red wall with metal rivets
a close up of a red wall with metal rivets

We offers precise heating solutions with MUTEX Ultra-Thin Flexible Heaters. Choose from a wide range of cUL and CE certified standard round and rectangular shapes. Find the perfect thin heater for your needs.

Type

Type

Type

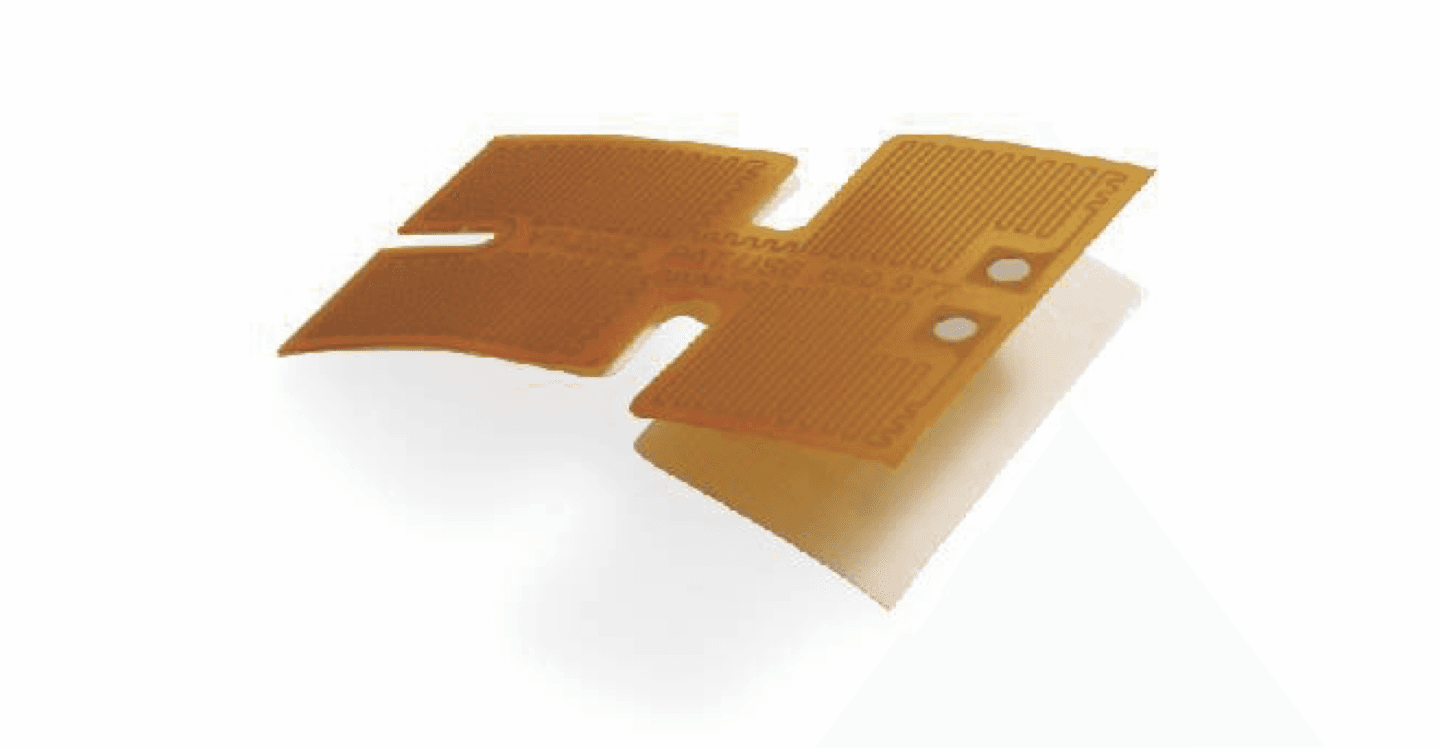

Ultra-Thin Flexible Heaters

a red room with a view of a city
a red room with a view of a city
a red room with a view of a city

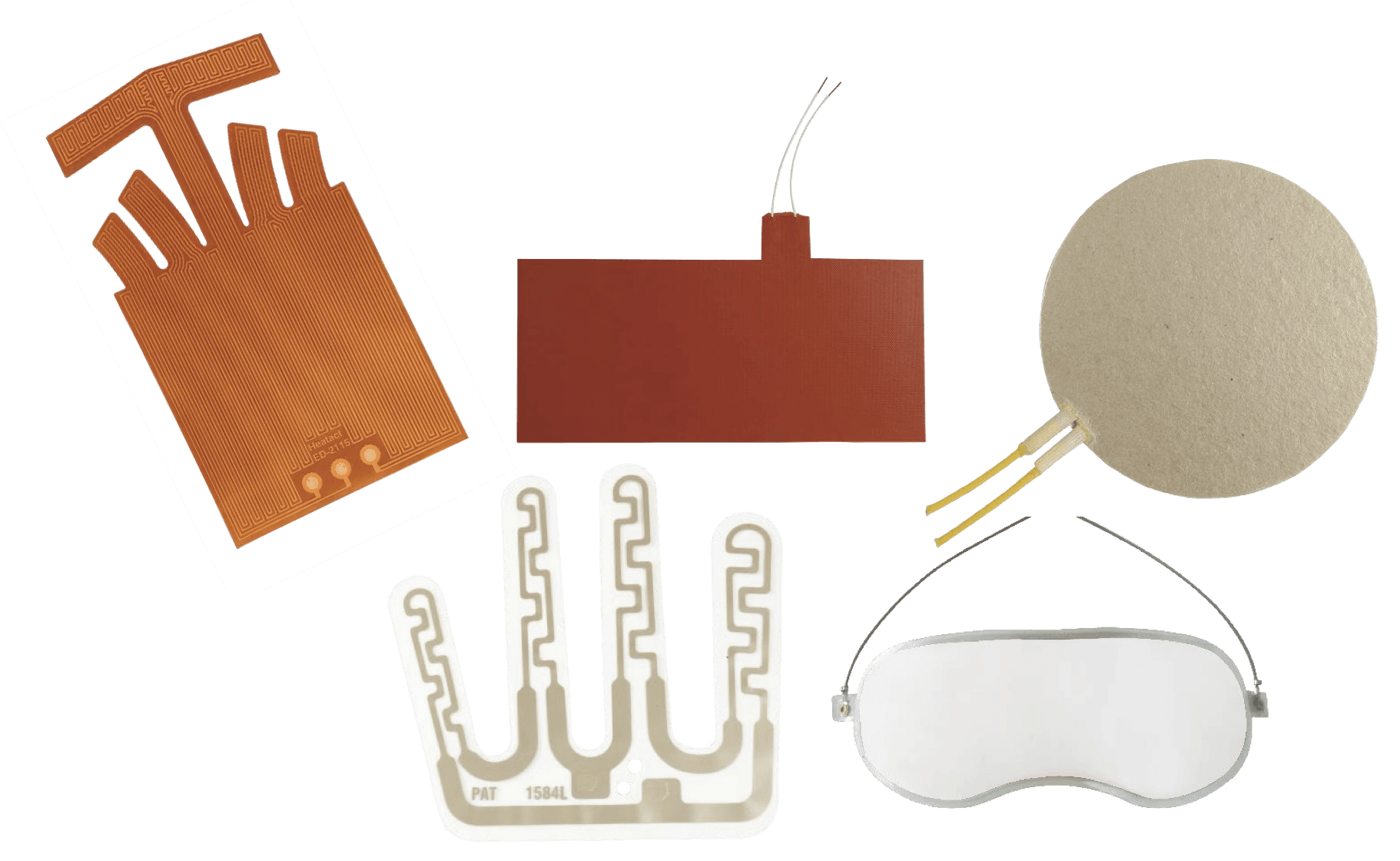

Customization Design and Integration Capability: Various shapes / Temperature control Components / Connectors types / Metal accessories

a close up of a red wall with metal rivets

Over 20,000 standard series specifications available for selection.

a close up of a red wall with metal rivets

Over 20,000 standard series specifications available for selection.

a close up of a red wall with metal rivets

Over 20,000 standard series specifications available for selection.

FLEXIBLE

Lightweight, agile, and ultra-thin (0.09~0.22mm) Minimum bending radius of 0.5mm

FLEXIBLE

Lightweight, agile, and ultra-thin (0.09~0.22mm) Minimum bending radius of 0.5mm

CONDUCTIVE

Continuous operating temperature range from -250°C to 250°C

CONDUCTIVE

Continuous operating temperature range from -250°C to 250°C

PATENTS

Awarded numerous patents across the world (Taiwan, Mainland China, and the United States invention patents)

PATENTS

Awarded numerous patents across the world (Taiwan, Mainland China, and the United States invention patents)

CERTIFICATIONS

Compliant with REACH, RoHS standards, and received CE, UL certification

CERTIFICATIONS

Compliant with REACH, RoHS standards, and received CE, UL certification

Our ultra-thin flexible heaters provide fast, uniform, and precise heating in a lightweight design under 0.22 mm. With over 5,000 CUL-approved models, they operate reliably from –250°C to 250°C and support a wide voltage range of 1.5–600V AC/DC.

All sizes, shapes, voltages, and resistances can be customized to fit different applications. Cost-effective and available in small orders, they also support optional adhesives and thermostats for easy integration.

Our ultra-thin flexible heaters provide fast, uniform, and precise heating in a lightweight design under 0.22 mm. With over 5,000 CUL-approved models, they operate reliably from –250°C to 250°C and support a wide voltage range of 1.5–600V AC/DC.

All sizes, shapes, voltages, and resistances can be customized to fit different applications. Cost-effective and available in small orders, they also support optional adhesives and thermostats for easy integration.

a red room with a view of a city
a red room with a view of a city
a red room with a view of a city

POWER
0.15 to 1440 Watts

POWER
0.15 to 1440 Watts

VOLTAGE
1.5V~600V (AC/DC)

VOLTAGE
1.5V~600V (AC/DC)

SURFACE TEMPERATUR
Maximum 250°C

SURFACE TEMPERATUR
Maximum 250°C

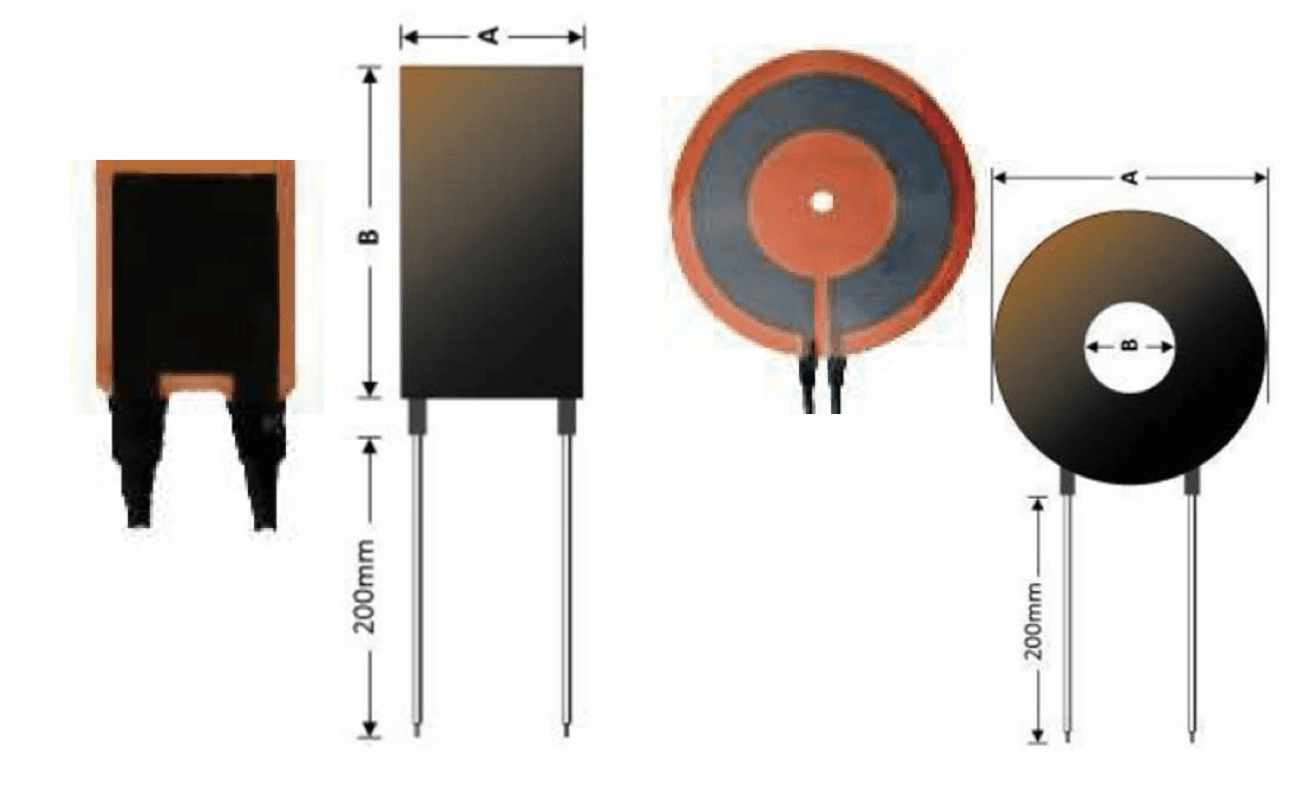

LEAD WIRE
22 AWG 200mm High Temperature proof wire

LEAD WIRE
22 AWG 200mm High Temperature proof wire

Type

Type

Type

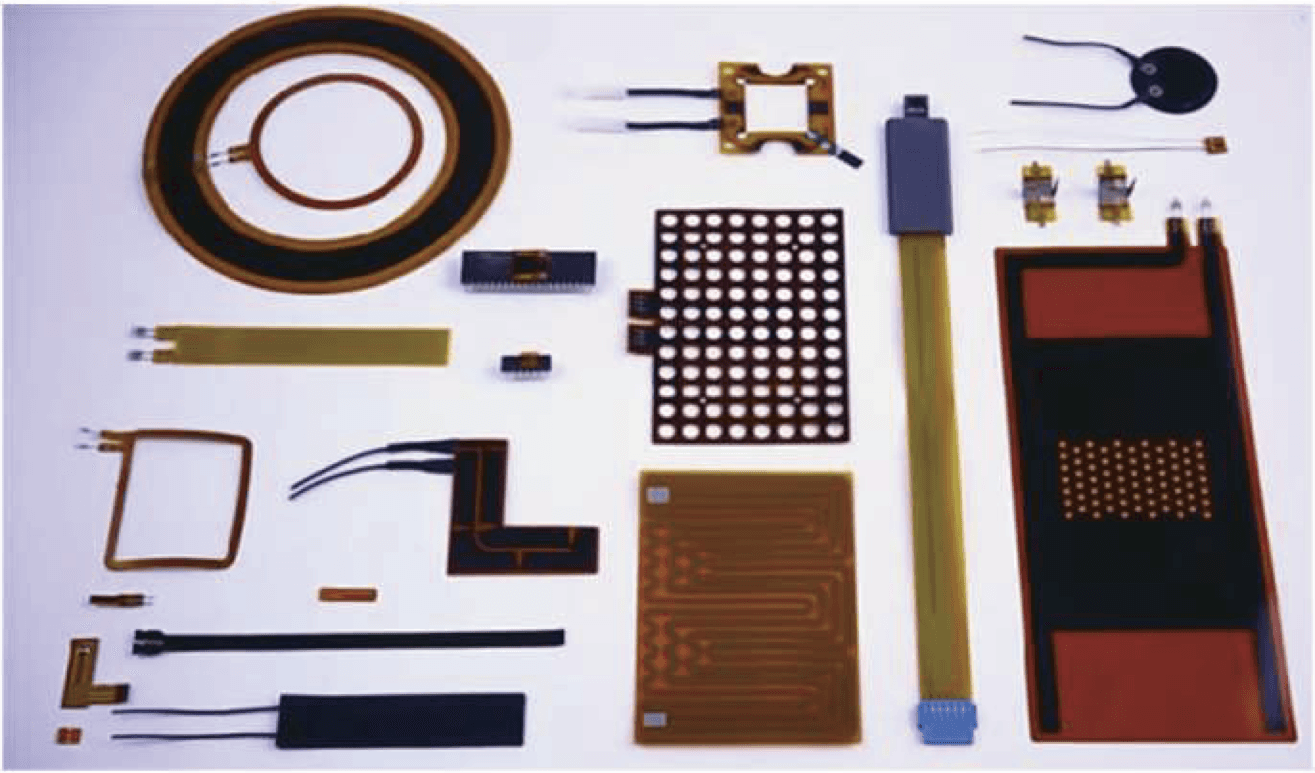

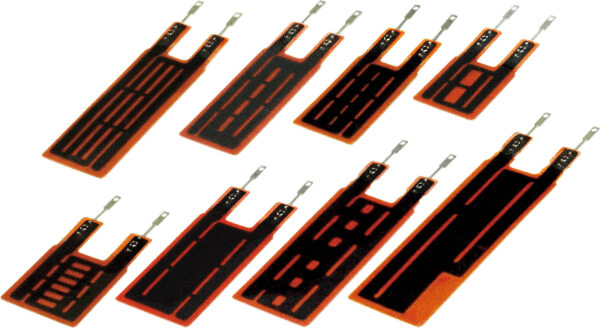

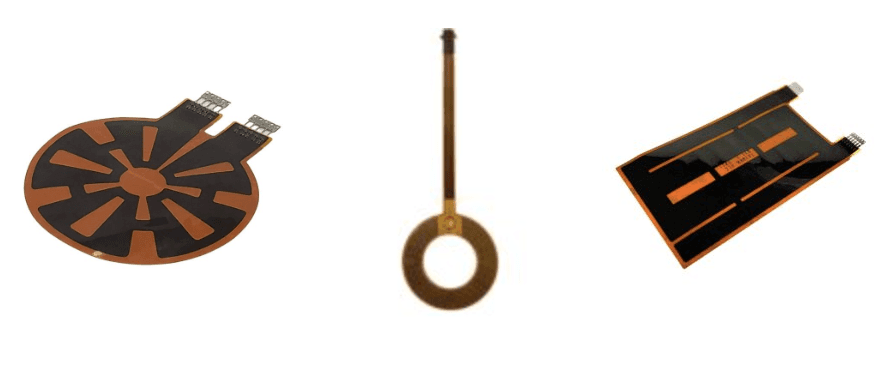

Super-Conductive FlexibleHeaters

a red room with a view of a city
a red room with a view of a city
a red room with a view of a city

Our super-conductive flexible heaters deliver rapid heat transfer with equally fast cooling, making them ideal for applications requiring precise thermal control. Built to be ultra-light, bendable, and rollable, they integrate seamlessly into complex product designs. Each heater can be fully customized in size, shape, and performance to meet diverse engineering needs.

a close up of a red wall with metal rivets

Materials: Polymide / Silicone Rubber / Mica / Transparent / Polyester

a close up of a red wall with metal rivets

Materials: Polymide / Silicone Rubber / Mica / Transparent / Polyester

a close up of a red wall with metal rivets

Materials: Polymide / Silicone Rubber / Mica / Transparent / Polyester

Fast Heat Conduction with Quick Cooling Time

Can be made in any shape, with the option to create holes of any shape within the flexible heater.

Fast Heat Conduction with Quick Cooling Time

Can be made in any shape, with the option to create holes of any shape within the flexible heater.

AC/DC 1 - 1000V

Supports multiple temperature control components, such as NTC thermistors, temperature sensors, and thermal fuses.

AC/DC 1 - 1000V

Supports multiple temperature control components, such as NTC thermistors, temperature sensors, and thermal fuses.

Lightweight, flexible and capable of being rolled and bent

Allows multi-zone power and temperature design on a single flexible heater.

Lightweight, flexible and capable of being rolled and bent

Allows multi-zone power and temperature design on a single flexible heater.

Withstands 3000V Voltage Testing

Safe and reliable, with a lifespan of over 20 years (excluding special applications)

Withstands 3000V Voltage Testing

Safe and reliable, with a lifespan of over 20 years (excluding special applications)

VERSATILE CONNECTION OPTIONS

A wide selection of standard terminal and lead-out types, including encapsulated and adhesive series specifications.

VERSATILE CONNECTION OPTIONS

A wide selection of standard terminal and lead-out types, including encapsulated and adhesive series specifications.
